Toyota Forklift Fault Codes List in PDF

Title File Size Download Links
Toyota Forklift 8FD / FG series Error Codes [PDF] 99.9kb Download

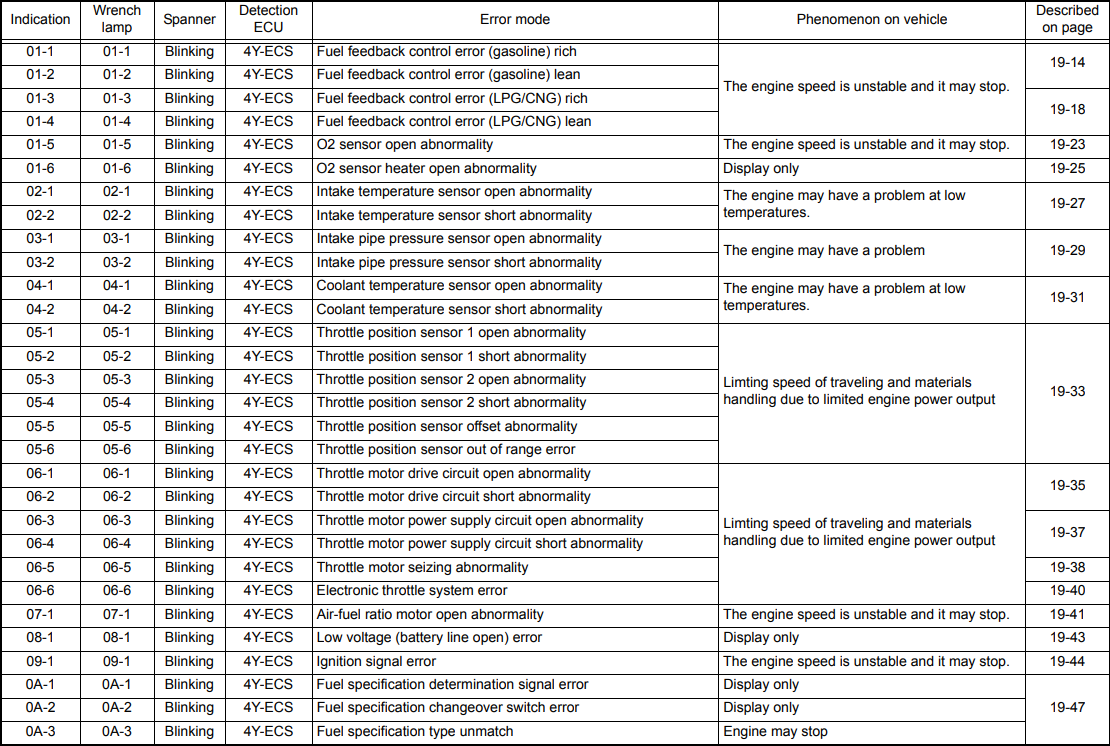

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 1 [PNG] 306.1kb Download

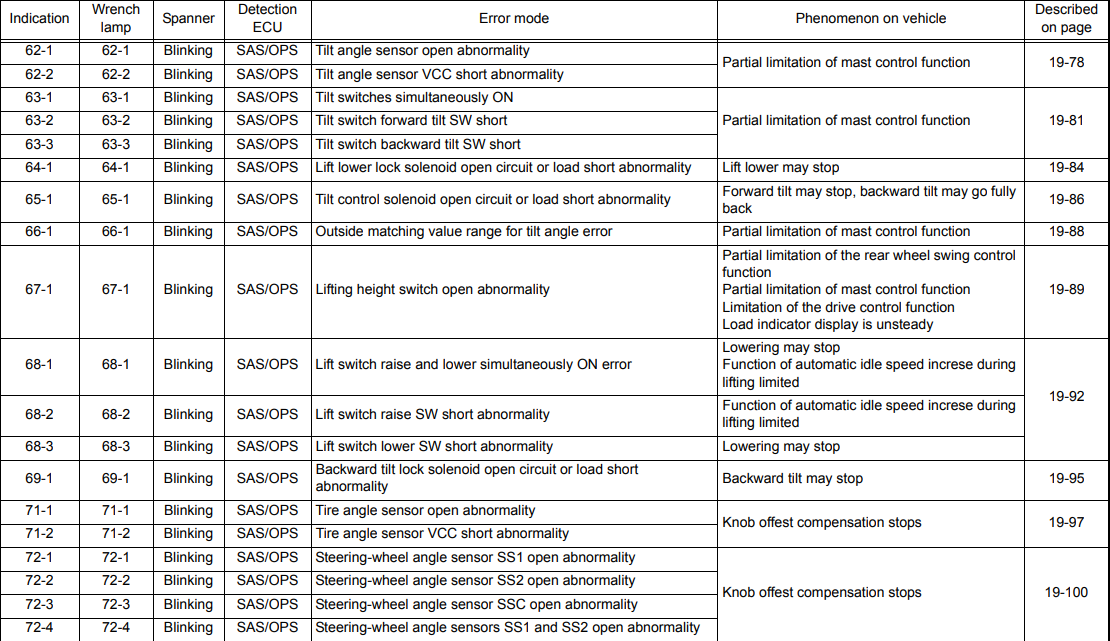

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 2 [PNG] 248.3kb Download

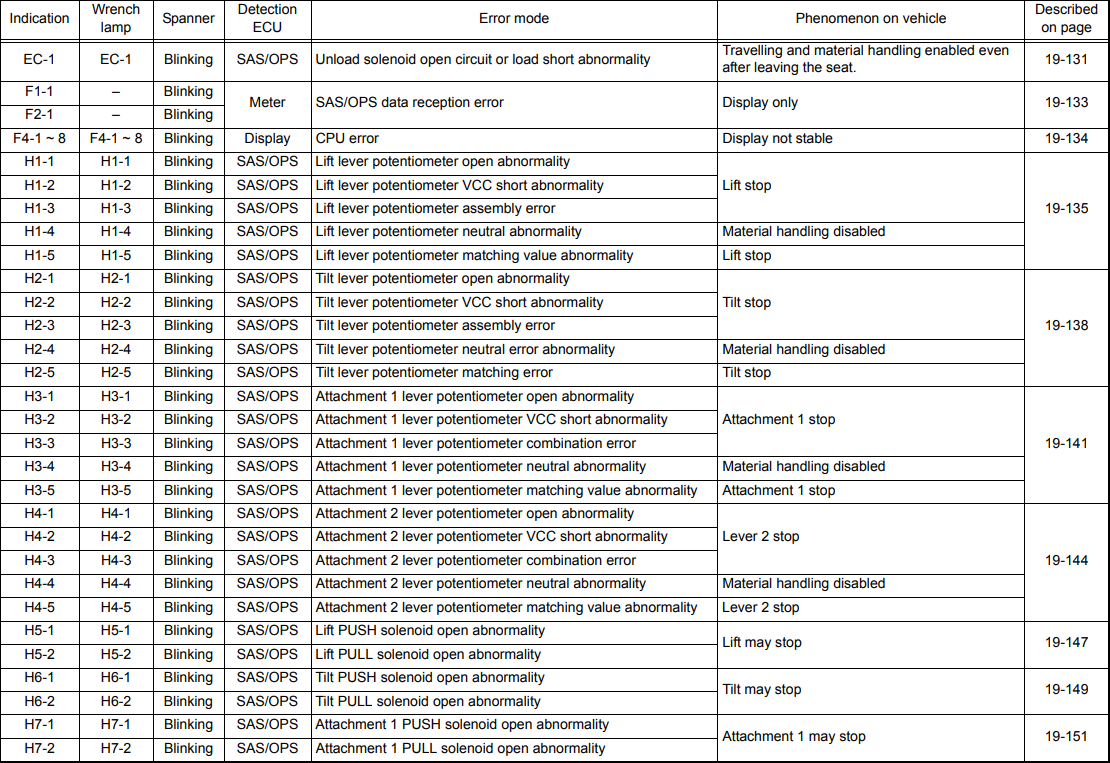

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 3 [PNG] 184.9kb Download

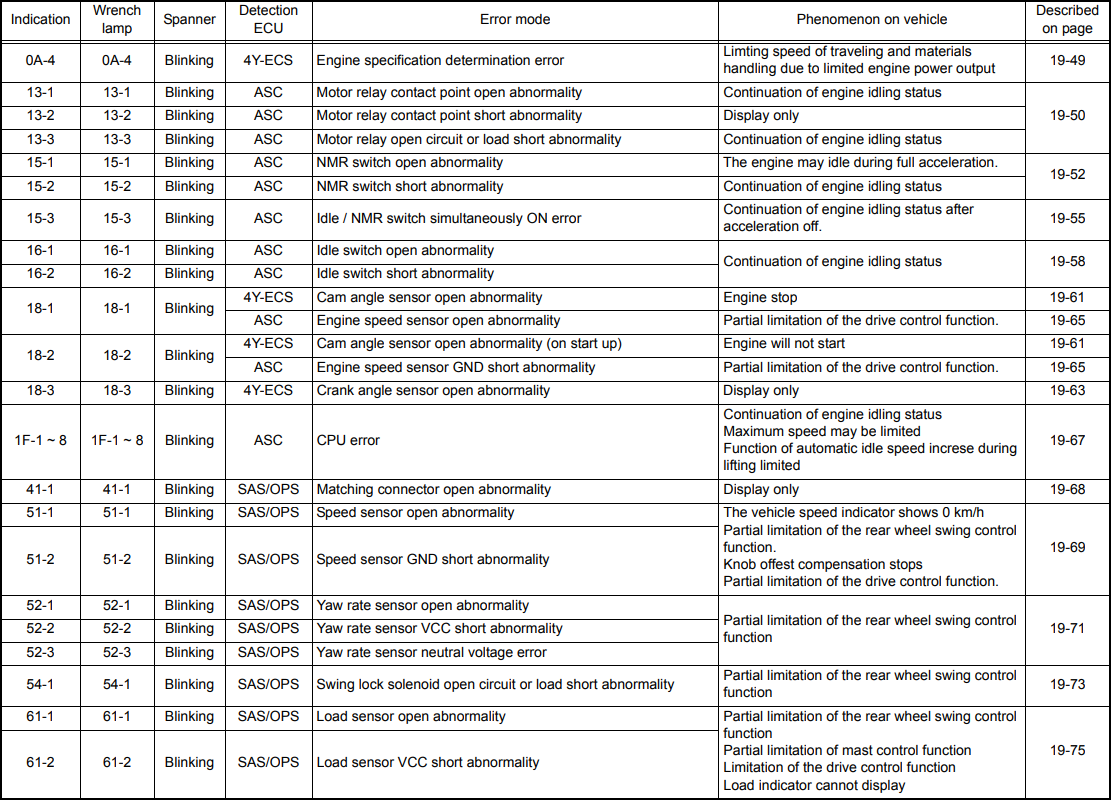

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 4 [PNG] 319.9kb Download

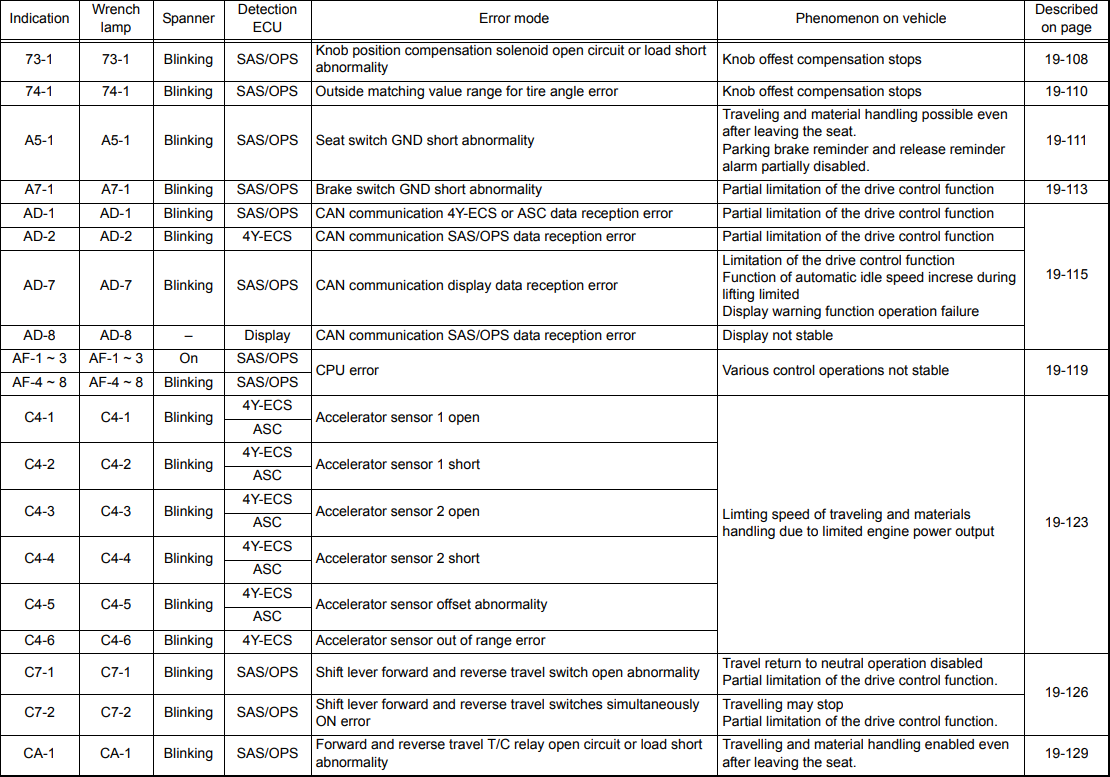

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 5 [PNG] 285.9kb Download

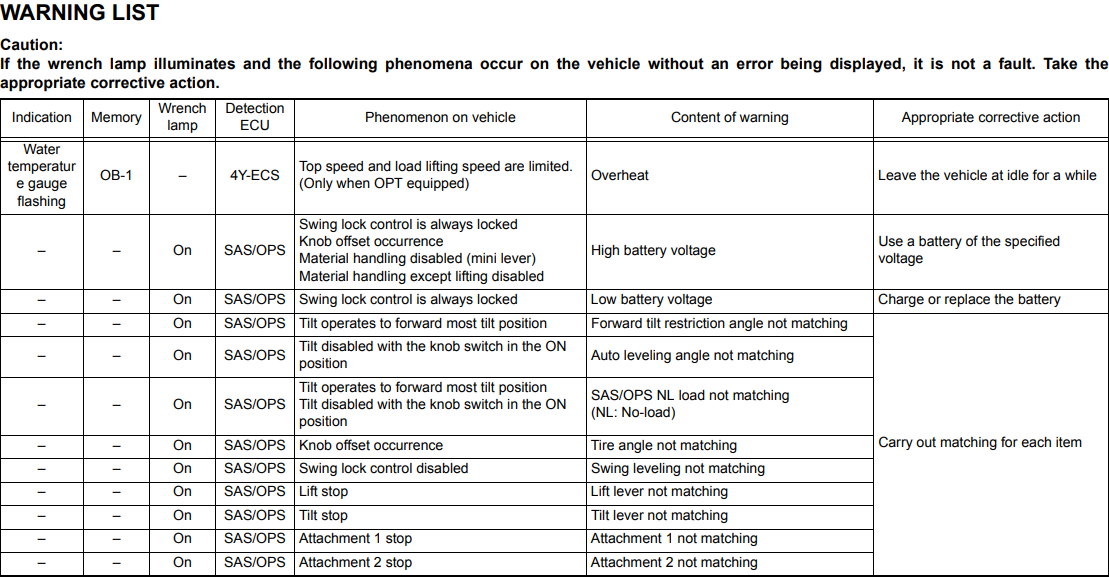

Toyota Forklift fault (error) codes – List Of Diagnosis Codes 6 [PNG] 271kb Download

Toyota Forklift Service, Repair and Maintenance Manuals PDF

Title File Size Download Links
Toyota Forklift 6FD18 Service Repair Manual [ZIP] 5.1Mb Download
Toyota Electric Forklift 7FBCU 15-55 Service Repair Manuals [PDF] 20.4Mb Download
Toyota Electric Forklift Trucks 7FBMF 16 / 18 / 20 / 25 / 30 / 35 / 40 / 45 / 50 Service Manual [PDF] 17Mb Download
Toyota Electric Powered Forklift 7FBE10~20 series Service Repair Manual [PDF] 5.2Mb Download
Toyota Electric Powered Forklift 8FBCU20~32 / 8FBCHU25 Repair Manual [PDF] 4Mb Download
Toyota Forklift 5-, 6-, 7-Series LPG Service Manual [PDF] 939.5kb Download
Toyota Forklift 50-4FD100~135, 50-4FDK150, 160 Service Repair Manual [PDF] 7.4Mb Download
Toyota Forklift 5FG / 5FD33~45 series Service Repair Manual [PDF] 1.4Mb Download
Toyota Forklift 5FG10-30 / 5FD70-30 series Service Repair Manual [PDF] 3.6Mb Download
Toyota Forklift 5FGC / 5FDC18-30 Service Repair Manual [PDF] 1.1Mb Download
Toyota Forklift 6FG / 6FD10-30 Service Repair Manual [PDF] 1.1Mb Download
Toyota Forklift 7FGU / 7FGU35~80 series, 7FGCU35~70 series Service Repair Manual [PDF] 4.4Mb Download
Toyota Forklift 7HBW30-7TB50 Service Manual [PDF] 3Mb Download
Toyota Forklift 8FG / 8FD Operator Manual [rus] [PDF] 2.7Mb Download
Toyota Forklift 8FG(D)U15-32 / 8FGCU20-32 Wiring Diagram [PDF] 3.4Mb Download
Toyota Forklift 8FG(D)U15-32, 8FGCU20-32 Electrical System Troubleshooting [PDF] 2.6Mb Download
Toyota Forklift 8FGCU15, 18, SU20 Wiring Diagram [PDF] 3.4Mb Download
Toyota Forklift FBMF 16-30 Workshop Repair Manual [PDF] 13.3Mb Download
Toyota forklift operators manual [PDF] 3.1Mb Download
Toyota Industrial Equipment list [PDF] 445.7kb Download
Toyota Pallet Trucks 6HBW30-6TB50 Service Manual [PDF] 2.1Mb Download
Toyota Pallet Trucks 8HBW30, 8HBE30, 8HBE40, 8HBC30, 8HBC40, 8TB50 Service Manual [PDF] 1.9Mb Download

Toyota Forklift Manuals PDF
