Detroit Diesel Series 60 troubleshooting, service and maintenance manuals, spare parts manuals & catalogues, wiring diagrams, schematics free download PDF
See also:
- Detroit Diesel Series 60 Fault Codes List
- Detroit Diesel DD15 Service, Repair and Maintenance Manuals PDF
Detroit Diesel Series 60 manuals
| Title | File Size | Download Links |

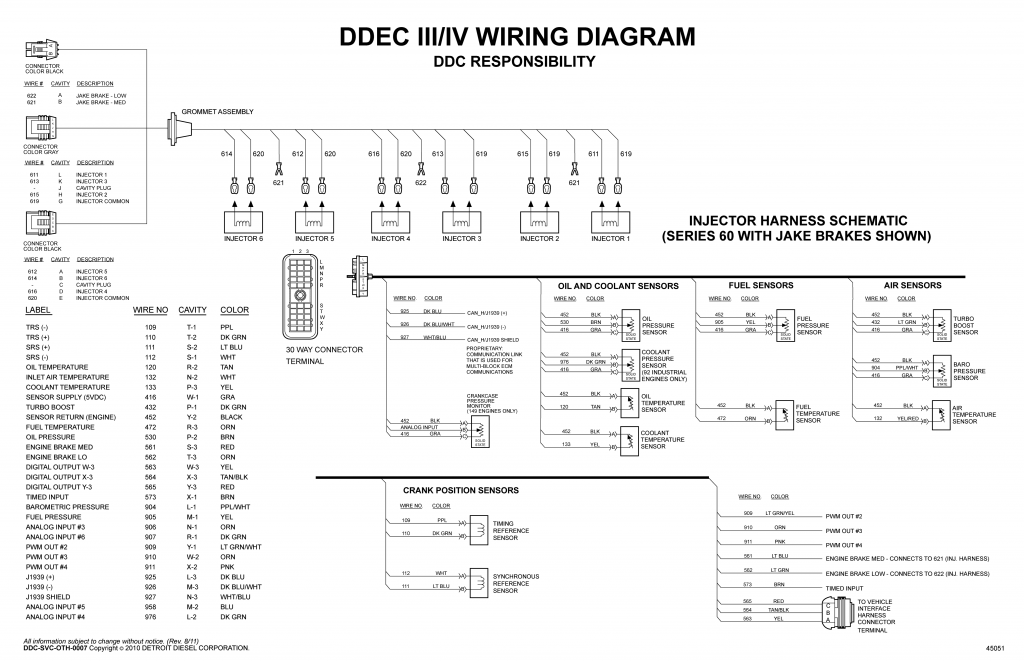

| Detroit DDEC III-IV Series 60 Wiring diagram [PNG] | 281.3kb | Download |

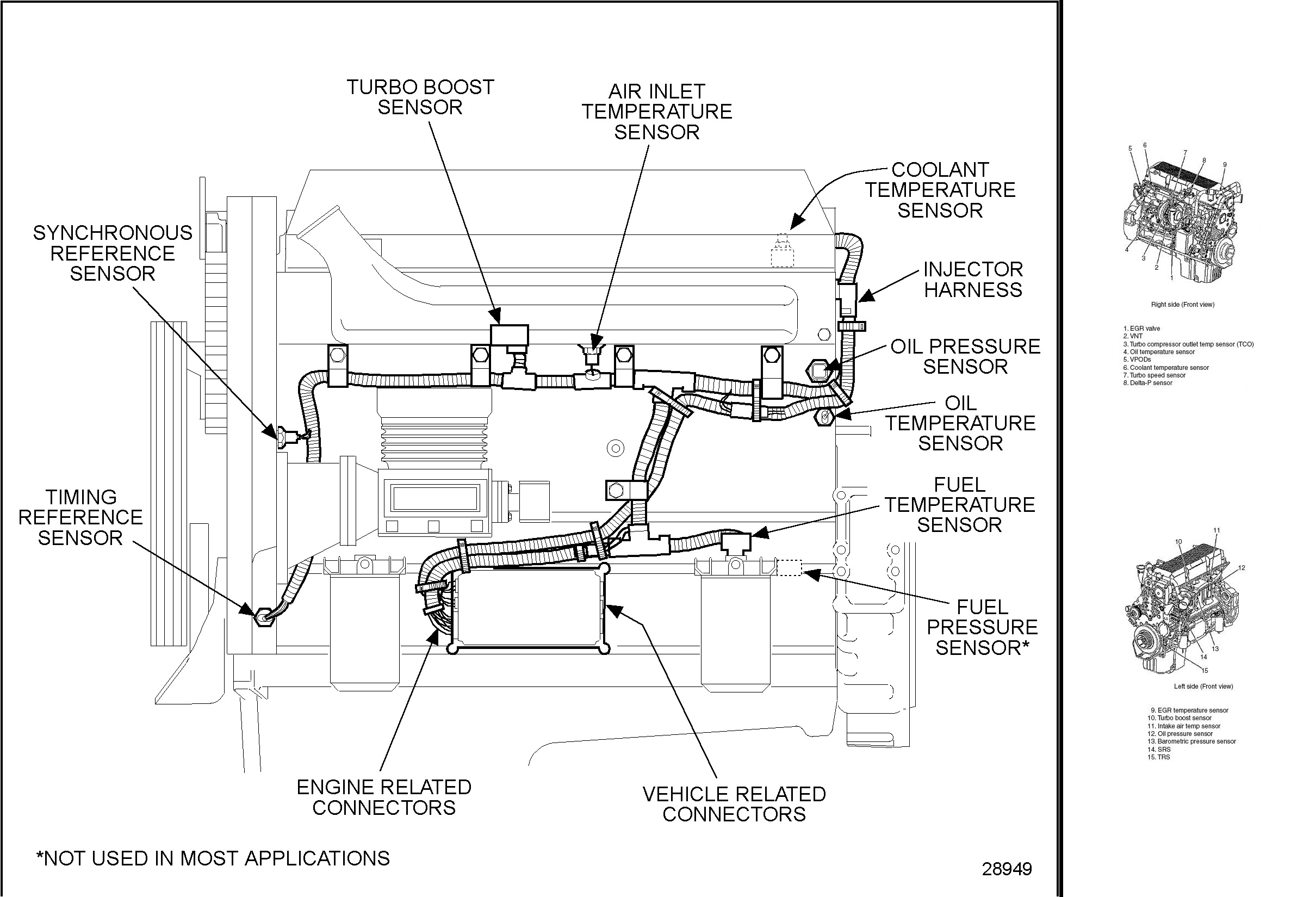

| Detroit Diesel 60 Engine sensors positions diagram [JPG] | 559kb | Download |
| Detroit Diesel DDEC III-IV Series 60 Injector Harness Schematic Wiring diagram [PNG] | 350.1kb | Download |

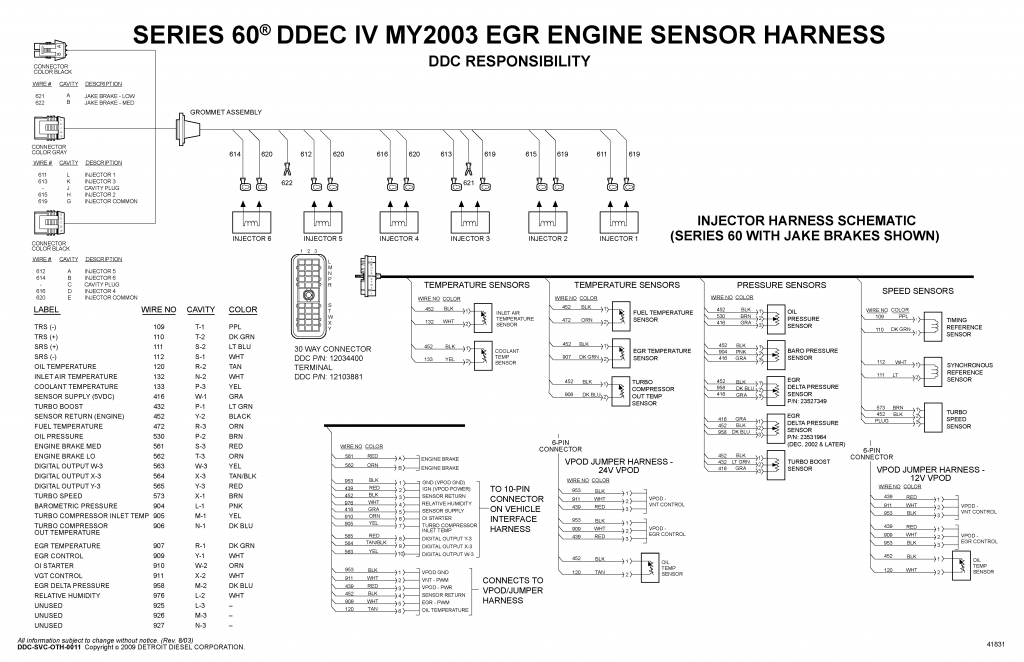

| Detroit Diesel DDEC IV Series 60 MY2003 EGR engine sensor harness Wiring Diagram [PNG] | 308.7kb | Download |

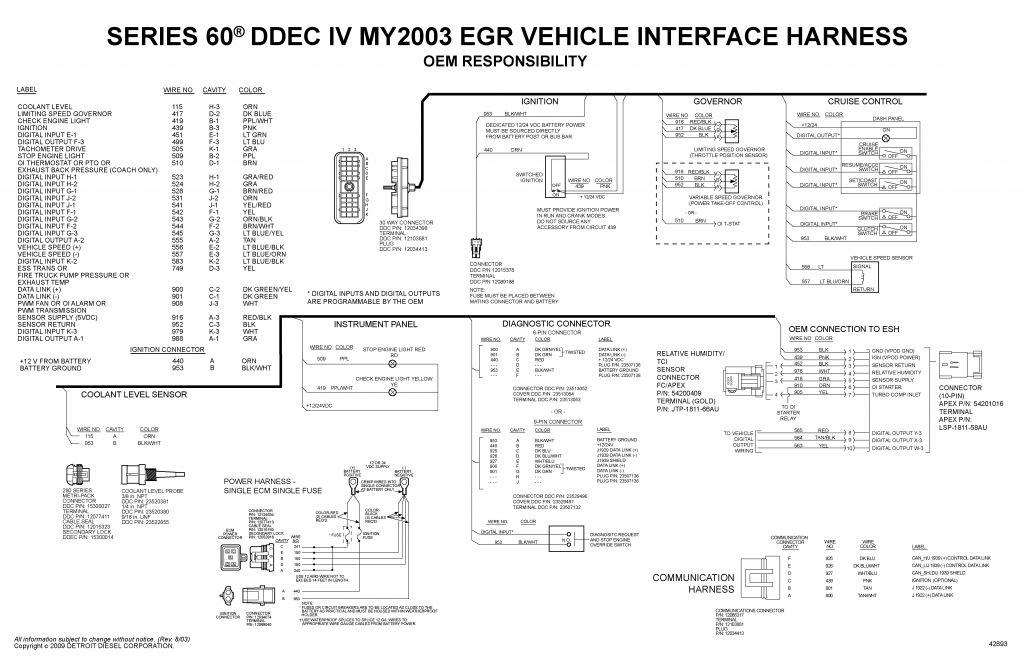

| Detroit Diesel DDEC IV Series 60 MY2003 EGR Vehicle Interface Harness Wiring Diagram [PNG] | 336.2kb | Download |

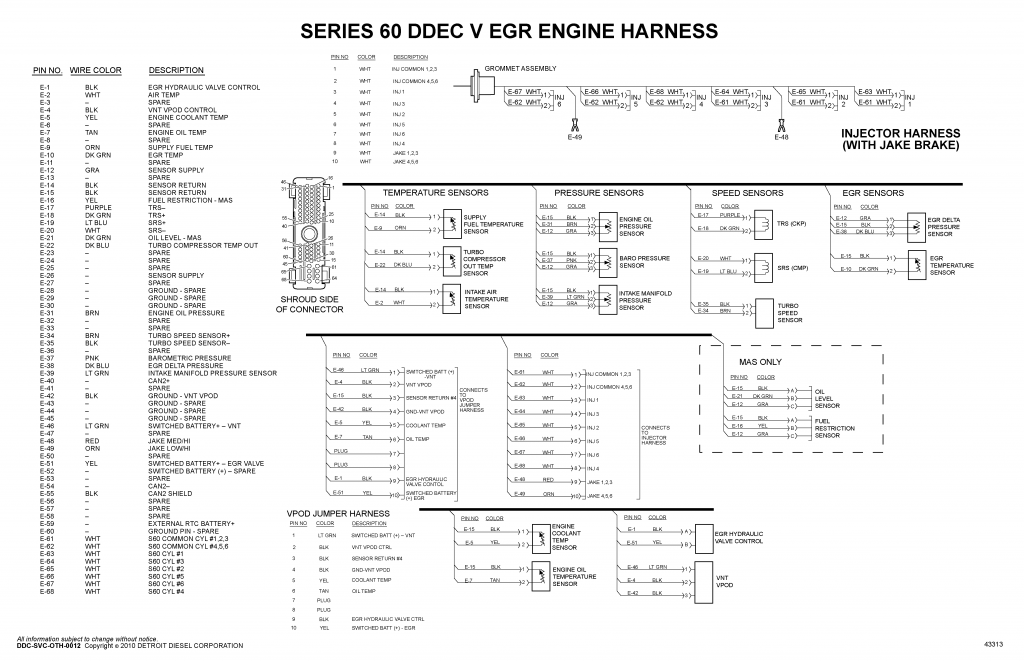

| Detroit Diesel DDEC V Series 60 EGR Engine Harness Wiring Diagram [PNG] | 304.1kb | Download |

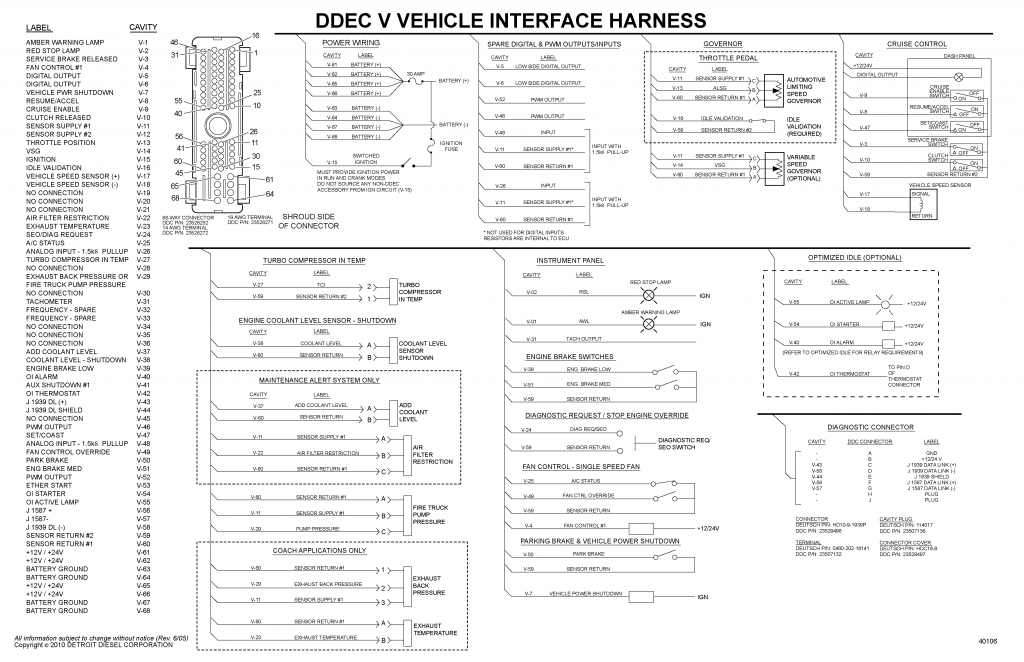

| Detroit Diesel DDEC V Series 60 Vehicle Interface Harness Wiring Diagram [PNG] | 363.2kb | Download |
| Detroit Diesel DDEC VI Series 60 MCM EGR EPA07 (CPC) Vehicle Interface Harness (VIH) Wiring Diagram [PNG] | 418.2kb | Download |

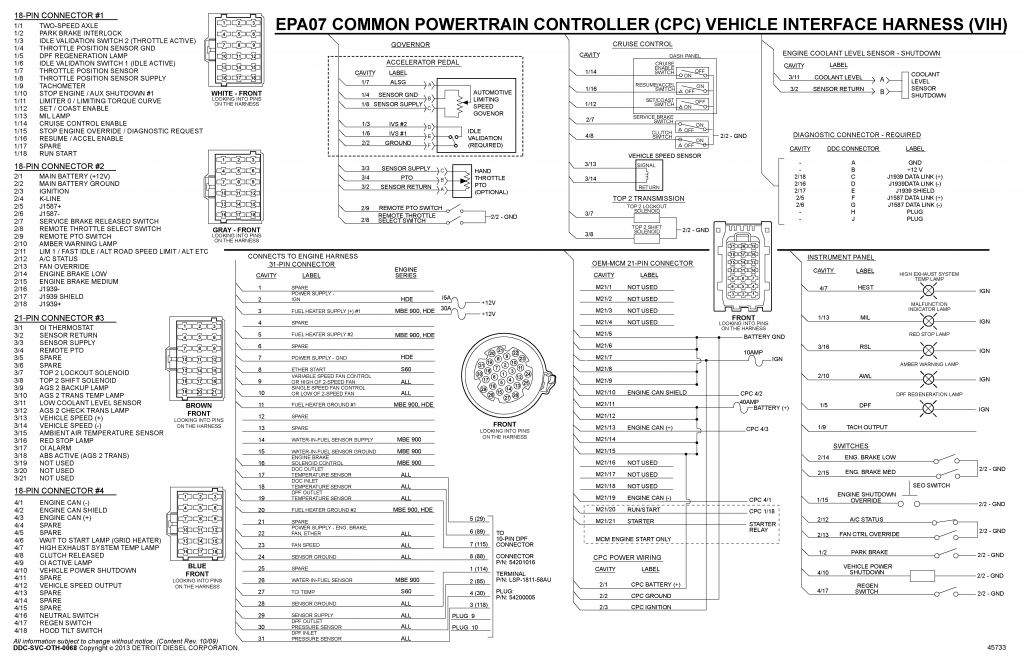

| Detroit Diesel DDEC VI Series 60 MCM EGR EPA07 Common powertrain controller (CPC) Wiring Diagram [PNG] | 396.9kb | Download |
| Detroit Diesel s60 Sensors [PDF] | 336.9kb | Download |
| Detroit Diesel 50-60 Series, 53, 71, 92 AND 149 Series Engines – Replacement Parts [PDF] | 1.7Mb | Download |
| Detroit Diesel 60 EGR Series Technician Manual [PDF] | 2.9Mb | Download |
| Detroit Diesel 60 Operator’s Manual [PDF] | 950.3kb | Download |
| Detroit Diesel DDEC VI Series 60 MCM – Electrical Wiring Diagram [PDF] | 442.7kb | Download |
| Detroit Diesel Engine Series 60 Service Manual [PDF] | 2.9Mb | Download |
| Detroit Diesel EPA04 Series 60 Operators Manual [PDF] | 947.7kb | Download |
| Detroit Diesel Miami SERIES 60 Parts Catalog [PDF] | 527.3kb | Download |
| Detroit Diesel Serie 60 DDEC VI – Troubleshooting Guide [PDF] | 3.7Mb | Download |
| Detroit Diesel Series 60 – ECU Manual [PDF] | 66.7kb | Download |
| Detroit Diesel Series 60 DDEC II to DDEC IV conversion 18SP546 [PDF] | 227.1kb | Download |
| Detroit Diesel Series 60 EGR Technicians Manual [PDF] | 2.9Mb | Download |
| Detroit Diesel SERIES 60 Parts Catalog Diesel Rebuild Kits [PDF] | 566.8kb | Download |
| Detroit Diesel Series 60 Service Manual – Diesel and Natural Gas-Fueled Engines [PDF] | 18.5Mb | Download |
| Detroit Diesel Series 60 Tier 3 Technical Specification [PDF] | 2Mb | Download |
Detroit Diesel Series 60 background information
In 1987, the production of the 12.7-liter Detroit Diesel Series 60 in-line 6-cylinder four-stroke diesel engine got underway. It was unlike other engines of the time in two key ways: the camshaft was located above the engine, and it was controlled entirely electronically. There was an 11.1-liter, 350-horsepower variant for buses introduced in 1993. This edition was withdrawn from sale in 1998.
The crankshaft’s larger motion in 2001 enabled the working capacity to grow to 14 liters, resulting in an increase of 575 horsepower and 2.510 Nm of torque. The 14-liter model, equipped with the DDEC V control unit, took over as the standard for Freightliner tractors in 2004. After the 12.7-liter model of the Detroit Diesel Series 60 was discontinued in 2007, the 14-liter model was introduced.
The DDEC VI control system, compression, higher fuel pressure in nozzles, and a DPF filter were all used in 2007–2010 to update Detroit Diesel 14 liters to meet stricter environmental regulations. To reiterate, the engine’s cylinder block and crankshaft are identical to those seen in 2004–2006 vehicles. The 60th series of engines were retired in 2011 and replaced by the DD15.
Detroit Diesel Series 60
The production industry also makes extensive use of 12.7 and 14 liters Detroit Diesel Series 60 engines, which may be found in a variety of vehicles and facilities, including mine dump trucks and oil processing units.
